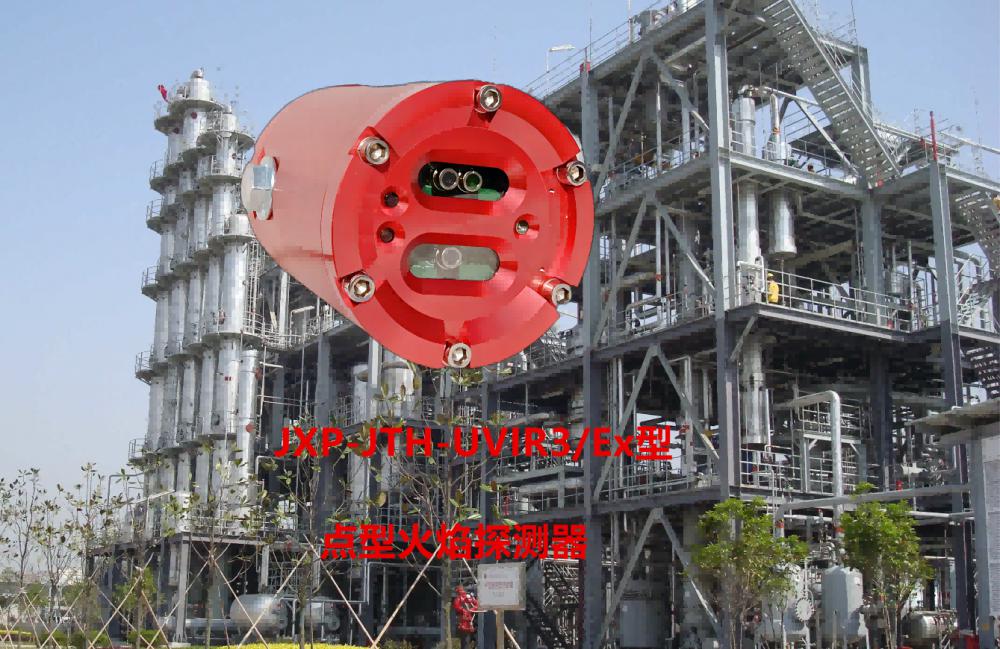

Infrared Flame Detector

whatsapp market@junxunpu.net +86 18339816911

Fill in form and we will call you back.

Production Introduction:



JunXunPu brand infrared flame detector is also known as smart point infrared flame detector. It is a fire detector used to respond to the light characteristics of the fire, that is to detect the light intensity of the flame burning and the flicker frequency of the flame. Through the built-in 16-bit microprocessor and signal processing algorithm, the real flame radiation and interference sources can be distinguished more effectively, and the influence of environmental factors on the detector is also greatly reduced.
The infrared flame detector adopts flame multi-spectral signal acquisition method/full-frequency wave analysis technology, which avoids the weak points of traditional detectors that are susceptible to interference. It has high anti-interference ability and is not affected by wind, rain, high temperature, high humidity and natural artificial light sources, and can work well in indoor or outdoor environments.



Product Characteristics:



Adopting multi-band detection technology to achieve fire detection.


Built high-speed,low-power,high-performance 16-bit high-precision data processing chip.


Multi-level sensitivity is suitable for more occasions.


Detection angel of view infrared 110°,ultraviolet 120°.

The perfect algorithm best combines flame detection and false alarm capabilities.


The detector is suitable for a variety of fuels.


Suitable for heavy industry applications.


Anti-riot design is suitable for industral sites in hazardous areas.


Low maintenance cost and easy to update.



Product Parameters:



Model JXP-JTH-UVIR3/Ex JXP-JTH-UVIR2/Ex JXP-JTH-UVIR1/Ex
Detection Time IR:3.8-5.0um
UV:185-260mm
IR:3.8-4.3um
UV:185-260mm
IR:4.3um
UV:185-260mm
Response Time <20s Viewing Angle Range 120°
Rated Voltage DC24V Ex-mark Ex d IIC T6 Gb
International Protection IP66 Temperature ﹣10℃~55℃
Overall Dimension ∅100mm×134mm

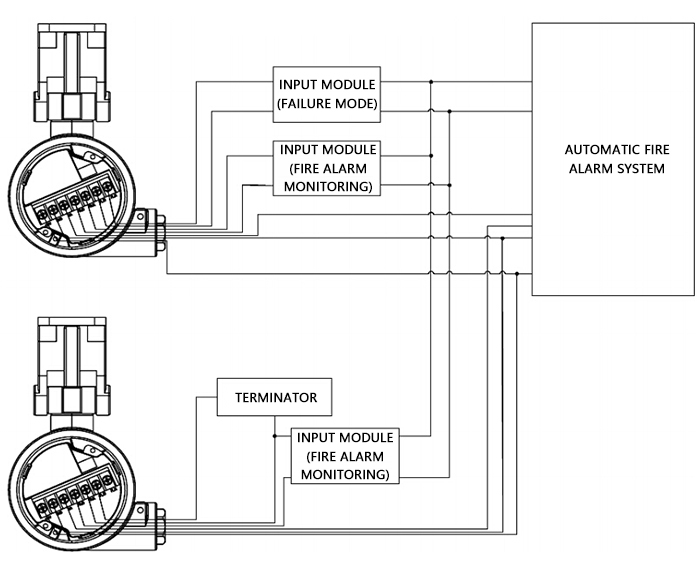

Fire Progress Diagram:


JunXunPu Infrared Flame Detector Fire Progress Diagram

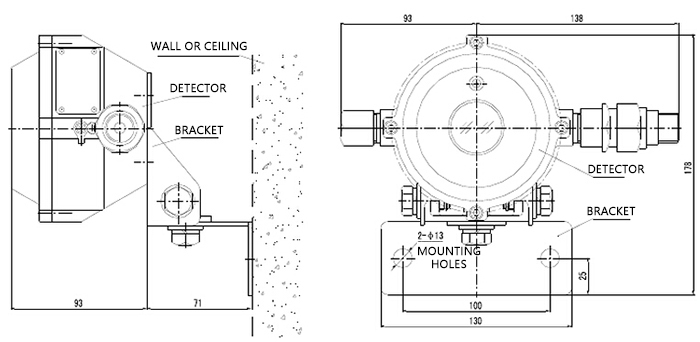

Installation Methods:


JunXunPu Infrared Flame Detector Installation Methods

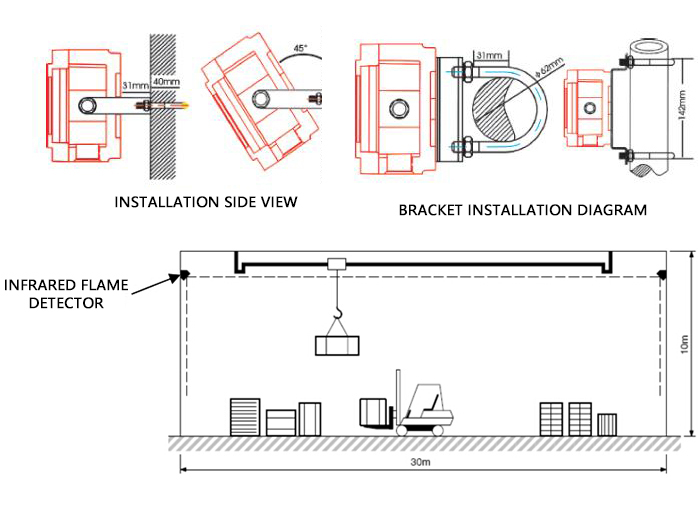

Installation Layout:


JunXunPu Infrared Flame Detector Installation Layout

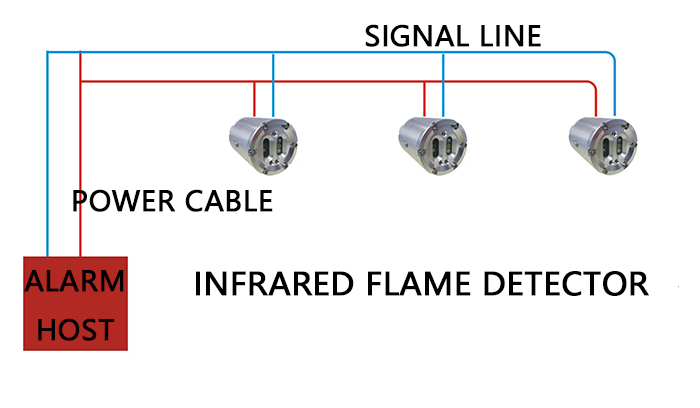

Installation System Diagram:


JunXunPu Infrared Flame Detector Installation System Diagram

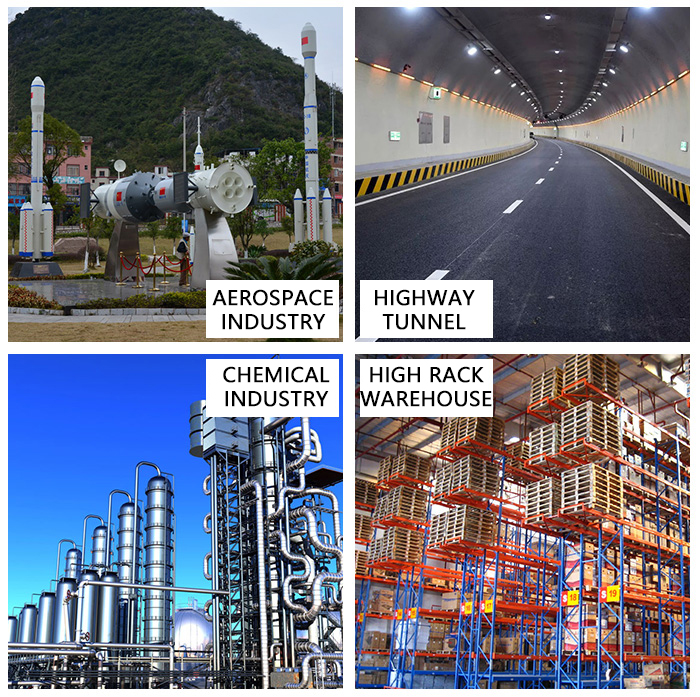

Applicable Places:




Production Qualifications:
