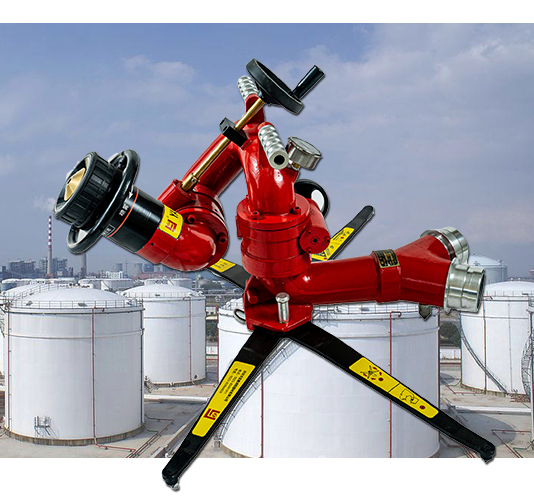

Mobile water and foam dual-purpose cannon, can be equipped with foam tube. Portable water and foam cannons have the advantages of reasonable design, compact structure, low center of gravity, and stable operation. The gun body is equipped with a fast ball valve, which can be conveniently closed or opened and has a flow adjustment function. Horizontal rotation and pitching of the gun adopt damping rods, which make the steering flexible and fast. The nozzle spray direct current conversion is fast, and it is equipped with a barrel for spraying foam mixture (foam tube needs to be purchased separately), which can spray foam mixture. Mobile water and foam cannons are light in weight, simple to operate, flexible and reliable, foldable, easy to carry and store, and has a positioning and locking function at all parts during work, so that firefighters can spray at fixed points and evacuate the fire. It is an ideal mobile fire fighting equipment.
▶ Mobile water and foam cannon also has remote control (distance up to 150m), electric control, manual control, and can be cross-operated.
▶ It is not restricted by manual electric control conversion, and completes the characteristics of horizontal rotation, pitch rotation, and adjustable jet flow (DC and spray).
▶ Compared with similar products, the gun has the advantages of small size, light weight, large flow, long range, simple operation, and can be easily and quickly installed with a special foam tube to directly spray clean water foam or protein foam.
▶ Mobile water and foam cannon has a long range and good safety.
▶ Mobile water cannon has the characteristics of reliable operation, convenient movement, simple operation and strong maneuverability.
▶ Portable water cannon is suitable for fire insulation protection and various large and medium-sized chemical production bases, toxic and harmful fires, forest fires, and fire extinguishing of various large-scale buildings.
| Model | PSY30 | PSY40 |
| Rated Working Pressure(MPa) | 0.8 | 0.8 |
| Rated Flow(L/S) | 30 | 40 |
| Flow Tolerance | ±8% | ±8% |
| Range(m) | ≥55 | ≥65 |
| Maximum Working Pressure（MPa） | 1.0 | 1.0 |
| Pressure Range（MPa） | 0.8-1.0 | 0.8-1.0 |
| Elevation Angle | +30-+60 | +30-+60 |
| Horizontal Rotation Angle | ±20 | ≥90 |
| Spray Angle | ≥90 | ≥90 |
| Weight(KG) | 9.8 | 22 |
Fight fires in large oil tanks, ships, petrochemical plants, etc. Mobile fire water and foam cannon is very suitable for flammable and explosive dangerous petrochemical enterprises, oil tank farms, oil transportation terminals, large warehouses or fire scenes that are difficult to enter by fire trucks.
