Lightweight Portable Fire Monitor Technical Specifications User Guide
Product Overview

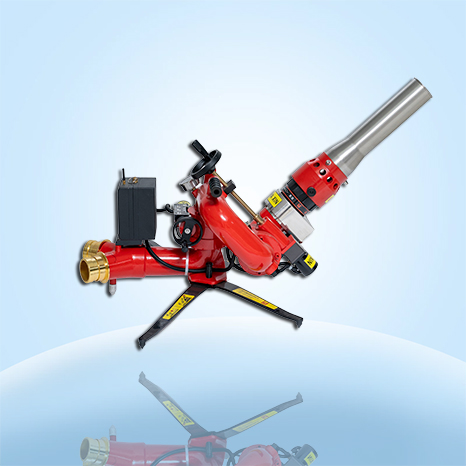

This portable fire monitor features an ergonomic design, compact structure, low center of gravity, and stable operation. Its screw-driven horizontal rotation and elevation adjustment ensure excellent self-locking performance. With adjustable flow rate, spray/straight-stream modes, and foldable construction, it offers easy operation, reliability, and portability.
Equipped with positioning locks for stable firefighting, it allows precise targeting and quick withdrawal. The interchangeable foam tube enables rapid switching between water, foam, or protein foam discharge, making it an ideal mobile firefighting solution.
Technical Specifications
Rated Working Pressure: 0.6 MPa
Working Pressure Range: 0.6–0.8 MPa
Flow Rate: 30.6 L/s
Range: ≥ 60.5 m
Maximum Spray Angle: 90°
Elevation Angle: +30° to +70°
Horizontal Rotation: 45°
Weight:
Single Nozzle: ≤ 8.4 kg
Dual Nozzle: ≤ 9.4 kg
Adjustable Angle: ±20°
Operating Instructions
Deployment:
Transport the monitor to the fire scene and unfold the base.
Connect the monitor to a water supply using a 65mm hose.
Position the monitor downwind for optimal performance.
Post-Use Maintenance:
Inspect all components after use to ensure full functionality.
Perform regular maintenance to prolong service life.
Operation, Maintenance & Care
Before Use:
Loosen the locking handwheel, adjust to the desired angle, then begin discharge.
After use, re-tighten the handwheel to secure the position.
Cleaning:
Keep the monitor clean; rinse thoroughly with water after foam use.
Lubrication:
Apply lubricant to grease fittings and rotating parts periodically for smooth operation.
Troubleshooting:
If pressure is too high or range is reduced, check for nozzle blockages and clean immediately.
Installation Precautions:
Flush the pipeline before connecting the monitor to prevent debris clogging.
Structural Integrity:
Regularly inspect fasteners; tighten if loose.
Long-Term Use:
Perform surface treatment if the monitor shows wear.
Winter Care:
Drain residual water to prevent freezing damage.
Optimal Usage:
Operate downwind whenever possible for better control.
Vehicle-Mounted Use:
Secure the monitor with a mounting bracket to prevent damage from vibrations.
