Fixed Fire Monitor Operating Instructions

Product Overview

The fixed fire monitor is a long-range firefighting device that uses water as its primary extinguishing medium. Its key components include:

Inlet flange

Monitor body

Nozzle assembly

Operation handles

Positioning/locking mechanism

Vibration-resistant pressure gauge

This robust system features:

360° horizontal rotation

Adjustable elevation angles

Secure locking capability for operator safety

Dual spray patterns (straight stream and water fog)

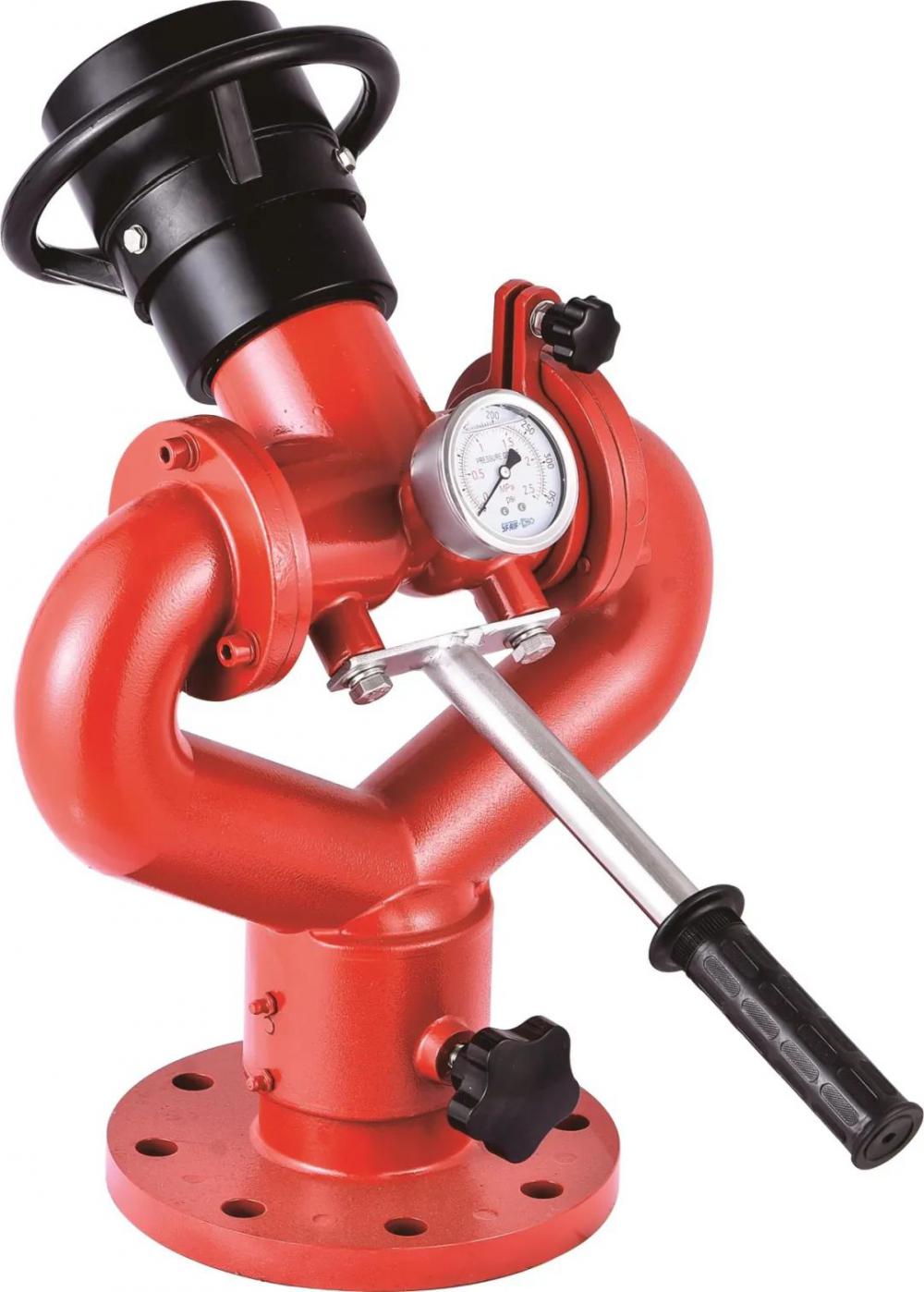

fire monitor.jpg

Operating Procedure

1. Pre-Operation Inspection

Verify all flange connections are properly bolted and sealed

Confirm piping system integrity

2. Pressure Adjustment

Regulate water pressure to specified operating range (0.6-0.8MPa)

Monitor via built-in pressure gauge

3. Spray Pattern Selection

Straight stream mode (for solid fuel fires):

Rotate pattern selector clockwise

Fog spray mode (for cooling/protection):

Rotate pattern selector counterclockwise

4. Flow Rate Adjustment

Release flow limiter handle (right-to-left motion)

Rotate flow control sleeve:

Clockwise = Decrease flow

Counterclockwise = Increase flow

Re-engage limiter handle (left-to-right)

5. Directional Targeting

Adjust horizontal orientation via rotation base

Modify elevation angle using vertical control

Safety Features

Positive locking mechanisms allow safe operator withdrawal

Heavy-duty construction withstands fireground conditions

Clear visual indicators for all adjustments

Maintenance Requirements

Monthly lubrication of moving parts

Quarterly pressure testing

Annual full system inspection

Applications

Ideal for:

✓ Petrochemical facilities

✓ Storage tank farms

✓ Aircraft hangars

✓ Warehouse complexes

✓ Port facilities
