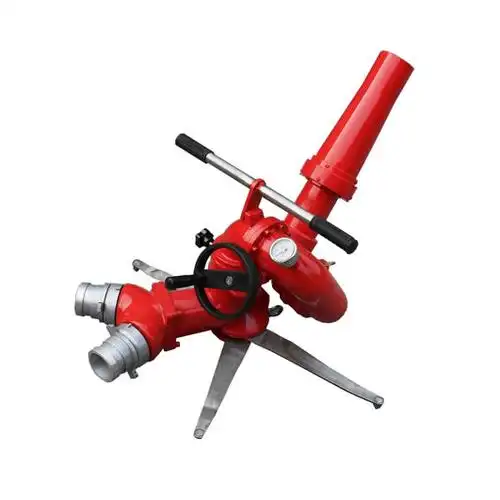

Portable Fire Monitor 60mRange And Foam Compatibility
Portable fire monitor is engineered for superior performance, rapid deployment, and reliable operation in demanding firefighting scenarios. Its intelligent design incorporates a low center of gravity and a compact, foldable structure, ensuring exceptional stability during operation and effortless portability for storage and transport.
A key feature is the screw-driven mechanism for horizontal rotation and vertical elevation, which provides precise nozzle positioning and excellent self-locking. This ensures the stream holds its target accurately, allowing firefighters to secure the cannon and maneuver safely. The monitor offers both adjustable flow patterns (spray and straight stream) and the capability to quickly attach a dedicated foam tube for effective water or protein foam application.
I. Key Features & Benefits:
Robust & Stable Design: Low center of gravity and compact build ensure steady operation.
Precision Targeting: Screw-driven horizontal rotation (+45°) and vertical elevation (+30° to +70°) with reliable self-locking.
Dual Flow Mode: Switch between a focused straight stream for reach and a spray pattern for area coverage.
Foam Compatibility: Easily attaches to a dedicated foam tube for firefighting foam application.
Highly Portable: Foldable design and lightweight construction (Single nozzle: ≤8.4kg, Double nozzle: ≤9.4kg) enable easy carrying and setup.
Secure Operation: All components feature positive locking pins for safe, fixed-position discharge.
II. Technical Specifications:
Rated Working Pressure: 0.6 MPa
Working Pressure Range: 0.6 - 0.8 MPa
Flow Rate: 30.6 L/S
Jet Range: ≥ 60.5 m
Maximum Spray Angle: 90°
Elevation Angle: +30° to +70°
Horizontal Rotation Angle: 45°
Weight (Single Nozzle): ≤ 8.4 kg
Weight (Double Nozzle): ≤ 9.4 kg
Nozzle Adjustable Angle: ±20°
III. Operation Procedures:
Deploy: Transport the monitor to the incident scene and fully extend its base for stability.
Connect: Attach a standard 65mm fire hose from the water supply to the monitor's inlet.
Position: Ideally, operate the monitor from a upwind position for maximum effectiveness and safety.
Aim: Unlock the handwheels, manually position the nozzle to the desired angle, and re-tighten the handwheels to lock it in place before opening the water supply.
IV. Maintenance & Care Guide:
Post-Use: Always flush the monitor with clean water after using foam to prevent corrosion and clogging.
Inspection: Regularly check for and clean any debris from the nozzle, especially if pressure increases or range decreases.
Lubrication: Periodically apply grease to all grease points and moving parts to ensure smooth operation.
Hardware Check: Inspect and tighten any loose fasteners to maintain structural integrity.
Pre-Installation: Always flush the water supply line before connecting the monitor to prevent internal blockages.
Winterization: In freezing conditions, completely drain all residual water from the monitor to prevent casing damage.
